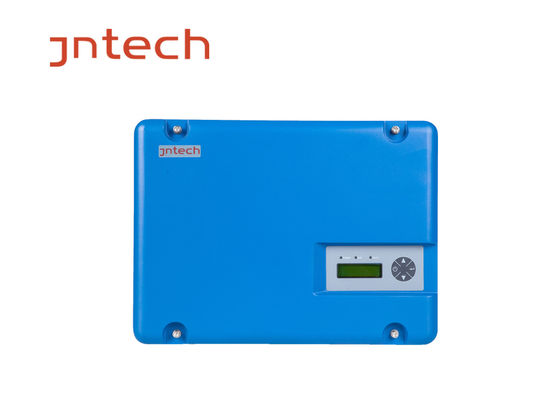

JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty

Good quality Solar Pump Controller for sales
Good quality Solar Pump Controller for sales
I'm Online Chat Now

JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty

China JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty supplier
JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty supplier JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty supplier

Large Image :  JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty

Product Details:

Place of Origin: China
Brand Name: JNTECH
Certification: CE TUV
Model Number: JNP7K5H

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton pallet
Delivery Time: 1-30days
Payment Terms: T/T, L/C
Supply Ability: 200+pcs+per week
Contact Now
Detailed Product Description
Warranty: 3 Years Protection Class: I
Protection Level: IP65 D.c. Max.Input Voltage: 880Vdc
Recommended MPPT Voltage: 460V---850Vdc Number Of String: 3

JNP7K5H Solar Pump Inverter 7.5KW/10HP MPPT IP65 0-50/60HZ,380-460Vac,three phase,Operating Temp. -25℃—+60℃



1.JNTECH 10HP(7.5kw)Solar Water Pumping System


JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.

JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty
2. Product features:

1.Grid utility work when sun radiation is unavailable, support system working 24h/day;

2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;

4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.

5. IP65 protection level

6. 3 years warranty

7. Complete system protection function and long lifespan.

8. Remote monitoring and communication function, can control its start and stop remotely.


3. 10HP/7.5kw solar pump inverter parameters



Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 16.3A
Max. MPPT efficiency 99%
Number of String 3
Max. applicable motor output power 7.5KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 18A
Dimension(W/H/D) 420*310*229mm
weight 13.9kgs
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation
Cooling method Natural cooling
Display LCD
Communication interface GPRS/RS485
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN 50178; IEC/EN 62109-1; IEC61800


4. Solar panels

Polycrystalline / Mono 100W to 330W solar panels are used in system configuration

Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)

Or small cells 100w start


  JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty


5. Solar pumping inverter

JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty
6. Pump Specifications


We choose pump according to project head and water requirement.

7. ON-Site Projects' Pictures

JNP7K5H Solar Intelligent Controller 7.5KW/10HP 0-50/60HZ 380-460Vac Long Lifespan 3 years warranty
