Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer

Good quality Solar Pump Controller for sales
Good quality Solar Pump Controller for sales
I'm Online Chat Now

Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer

China Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer supplier
Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer supplier Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer supplier Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer supplier Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer supplier Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer supplier Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer supplier

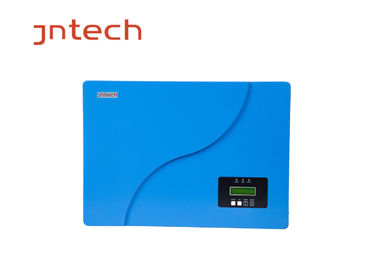

Large Image :  Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer

Product Details:

Place of Origin: China
Brand Name: JNTECH
Certification: CE
Model Number: JNF5KLF/48V

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1-5 work days
Payment Terms: L/C, T/T
Supply Ability: 200 pcs per week
Contact Now
Detailed Product Description
Transformer: Pure Copper Transformer Battery Type: Gel/Lithium
Display: LCD+LED AC Output: Emergency Load & Heavy Load
Output Voltage: 230Vac(±5%) Rated Frequency: 50/60Hz(±3%)

Jntech 5KVA solar off grid Inverter , Pure Sine Wave Single Phase Output

1. Introduction


Combing functions of inverter, AC charger, solar MPPT charge controller and AC by-pass to offer uninterrupted power support with portable size. The comprehensive LCD display offers user-configurable and easy accessible button operation.


.jpg

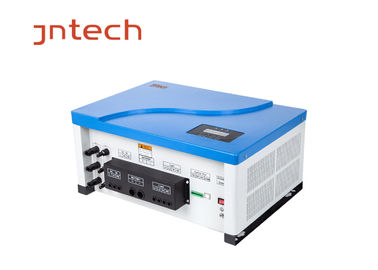

Single Phase Output 5KVA Off Grid Solar Inverter Pure Copper Transformer

2. System features:



Safety:

Overload and short circuit protection;

Auto restart while AC is recovering;

Compatible to mains voltage or generator power.



Smart:

Perfect pure sine wave output;

Selectable charging current;

Configurable AC/DC input priority via LCD setting.



Reliable:

Built-in pure copper transformer;

Silicon-controlled rectifier be adopted in AC by-pass;

Provide power supply to load for 24 hours.



Intelligent:

Advanced battery management system(BMS);

Support sealed battery and lithium battery;

Special AC output design, adopt emergency & heavy loads separate control.


3. 5KVA solar off-grid inverter with hybrid controller parameters



PV Input
Max. PV array input voltage 150Vdc
Recommended PV array power 7500W
MPPT voltage range 65-145Vdc
Battery
Rated voltage 48Vdc
Rated charge current 80A
Efficiency ≥97%
Type Gel/Lithium
Inverter Output
Rated output capacitor 5000VA
Rated output power 4000W
Output voltage 230Vac(±5%)
Rated frequency 50/60Hz(±3%)
Standby loss ≤10W
Max. efficiency 90%~93%
Total harmonic distortion (THD) <3%
Rated current 22.5A
Current peak factor 3:1
Overload

125% @rated power, 70s; 150% @rated power, 30s;

200% @rated power, 5s; 300% @rated power, 10ms

AC Input
AC input charge voltage 160~270Vac
AC input frequency 50/60Hz(±3%)
Max. charge current 40A
Grid by-pass
Switching time <20ms
Mechanical data
Dimension 500mm*365mm*235mm
Weight 35kg
Other parameters
Protection level IP21
Audible noice <60dB
Cooling method Force cooling
Operate temperature -20℃~+50℃
Storage temperature -25℃~+70℃
Status indicator LCD+LED
Interface RS485(optional)
Elevation 2000m (>2000m derting operate)
