Product Details:
Payment & Shipping Terms:
|
| Specification: | Normal | Application: | Commercial |
|---|---|---|---|
| Output Voltage (V): | 380V | Load Power (W): | 15kW |
| Work Time (h): | 8~24hours | Solar Panel Type: | Grade A Polycrystalline |
| Controller Type: | DC/AC | Output Frequency: | 50Hz |
| Water Pump Power: | 15kW | Inverter Power: | 15kW |
| MPPT Voltage: | 460~850Vdc | Display: | LCD |
| Protection Level: | IP65 | Warranty: | 10 Years For PV Module, 3 Years For Inverter |
| Port: | Shanghai Port, Ningbo Port, Nanjing Port |
JNTECH 15kW Solar Power Pumping Irrigation System with Solar Pump Inverter in Iraq
1. Solar Water Pumping System Introduction
solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panel to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.
The inverter applies high efficiency MPPT algorithm to maximize power harvested from solar panels.It will make the system to maximize efficiency to get the water as much as possible.The solar pumping system fulfills concept of low carbon,energy conservation,environmental protection to improve the living standard in water-deficient area.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
2.Solar pump system application
3. solar pump system feature
4. Solar panels
Polycrystalline 330w(Vmp=38.1 V, Isc=9.14A) solar panels are used in system configuration
5. Solar pumping inverter
d.c. Max. Input Voltage | 880Vdc |
Recommended MPPT Voltage | 460~850Vdc |
d.c. Max. Input Current | 41.4A |
Max. Motor Output Power | 18.5kW |
Rated Output Voltage | 380 ~ 460 Vac |
Output Frequency | 0~50/60Hz |
Rated Output Current | 36A |
6. Pump Specifications
We choose pump according tp project head and water requirement.

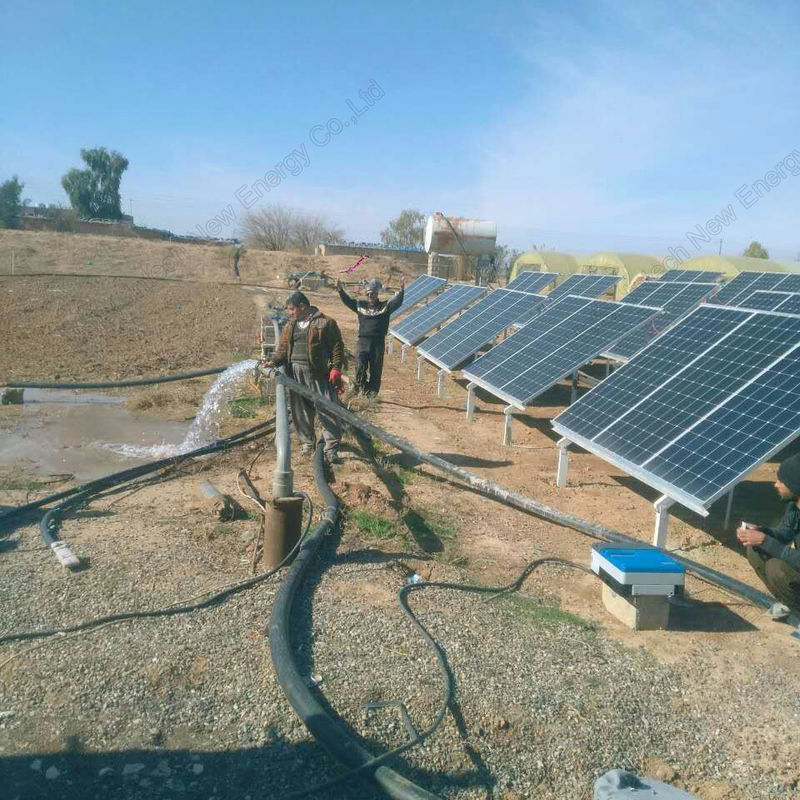

7. Project on-site
8.Packing & Shipping
| By sea | Delivery from Shanghai or Ningbo or Nanjing seaport |
| By air | Departure from Shanghai Pudong Airport |
| By express | By TNT/DHL/FedEx |
JNTECH is pioneer of offering “Solar Energy Storage System technology for residential use”, expanded solar industry development mode. Company also be in charge of drafting national industrial standards of solar pump inverter/system, solar sprinkling/drip irrigation system, residential solar system and etc.
JNTECH developed solar off-grid inverter, solar pump inverter, solar floating platform and relative solar products all have passed national or international certification, already have been widely used in more than 60 countries worldwide.
Focusing on renewable energy application’s high-tech technology, JNTECH RENEWABLE ENERGY CO.,LTD is one international enterprise, which integrate intelligent power electronics products’ R&D, manufacture, sales and service. Successively set up branch/subsidiary office in Pakistan, Kenya, Sudan, Dubai, Philipine, Morocco,and Mexico.
Company possess one Senior R&D team based on doctors and masters, standard-setter of 6 items in national solar industry, about 60 patents of all kinds, over 10 invention patents.
Adhering to the idea of“Create green energy future, Ensure the sustainable social development”, JNTECH takes scientific development view as guideline; Creating green eco-friendly new energy as duty, devoting to promoting the new energy industry development in the world. With non-stop innovation, JNTECH keep serving society, people and the national strategic goal of sustainable development.
