18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS

Good quality Solar Pump Controller for sales
Good quality Solar Pump Controller for sales
I'm Online Chat Now

18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS

China 18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS supplier
18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS supplier 18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS supplier 18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS supplier 18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS supplier 18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS supplier 18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS supplier

Large Image :  18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS

Product Details:

Place of Origin: Anhui, China (Mainland)
Brand Name: JNTECH
Model Number: JNP18K5H

Payment & Shipping Terms:

Minimum Order Quantity: 2 Set/Sets
Price: $1,800.00 - $2,100.00 / Sets
Packaging Details: Standard export carton packing with wooden-pallet.
Supply Ability: 1000 Set/Sets per Month
Contact Now
Detailed Product Description
Dc. Max. Input Voltage: 880V Recommended MPPT Voltage: 460-850VDC
Max. MPPT Efficiency: 99% Max. Motor Output Power: 18.5KW
Rated Output Voltage: 380-460Vac Three Phase Output Frequency Range: 0-50/60Hz
Communication: RS485/GPRS Display: LCD
Protection Level: IP65 Port: Shanghai Port, Ningbo Port, Nanjing Port

Jntech 18.5kw solar pumping inverter 3phase 380/400/440v for irrigation system with RS485/GPRS

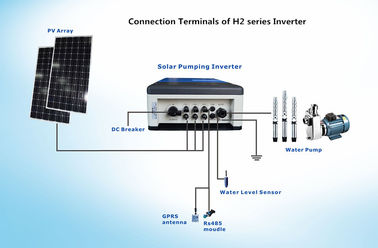

1. Introduction of three phase AC solar pump inverter

Jntech solar pumping inverter is AC three phase 50/60Hz inverter, there are two series of solar pumping

inverter,output 220V-240V inverters range from 1.1kw to 4kw. and 380-460V inverters range from 2.2kw

to 132kw.

18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS

18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS

18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS

2 .Features of Three phase AC solar pump inverter

1), Wide MPPT range,tracking the max. power point to improve the efficiency of the Whole system.

     efficiency is more than 99%.

2), With IP65 design, It can be installed outside with good waterproof.

3), Matching for any ordinary three phase 50Hz/60Hz pumps.

3), Full protection function can keep the system always in safe operation.

4), No need derate the power capacity for pump matching. The matching power with pump is 1:1.

5), Support Utility grid or generator work as pass by or complementary, working time 24hours per day

6), Three years warranty time.

7), Modular design,easy to install,operate and maintain.



3. Technical parameter of solar pump inverter

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 41.4A
Max. MPTT efficiency 99%
Number of Strings 3
Max. applicable motor output power 18.5KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 36A
Dimension(W/H/D) 360x500x176mm
weight

19.9kg

Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation
Cooling method Force cooling
Display  LCD
Communication interface RS485
Altitude  3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN 50178; IEC/EN 62109-1; IEC61800



4. Introduction of JNTECH AC Power Pack

18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS

AC Power Pack worked as power supplement during the whole Solar Water Pumping System, which allows the pump to be powered by an AC generator or commercial utility power, besides of solar energy. Powerpack can keep the system working 24 hours per day, and produce a great flow rate than you will see with only solar power.
The solar array remains connected. If the sun comes out again, less power is drawn from the AC source.
A common application is for diesel generator or unstable regions of utility grid. When the sun irradiation is insufficient, just switch on the AC power source, which will work as supplement; And even at night, AC power source can work as pass by.



5. Application of solar pump inverter

18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS



6.Project on-site

18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS



Packaging & Shipping





By sea  Delivery from Shanghai or Ningbo or Nanjing seaport
By air Departure from Shanghai Pudong Airport
By express By TNT/DHL/FedEx

Company information

18.5kw Irrigation System Solar Pump Inverter 3 Phase 380/400/440v With RS485/GPRS

JNTECH is pioneer of offering “Solar Energy Storage System technology for residential use”, expanded solar industry development mode. Company also be in charge of drafting national industrial standards of solar pump inverter/system, solar sprinkling/drip irrigation system, residential solar system and etc.

JNTECH developed solar off-grid inverter, solar pump inverter, solar floating platform and relative solar products all have passed national or international certification, already have been widely used in more than 60 countries worldwide.

Focusing on renewable energy application’s high-tech technology, JNTECH RENEWABLE ENERGY CO.,LTD is one international enterprise, which integrate intelligent power electronics products’ R&D, manufacture, sales and service. Successively set up branch/subsidiary office in Pakistan, Kenya, Sudan, Dubai, Philipine, Morocco,and Mexico.

Company possess one Senior R&D team based on doctors and masters, standard-setter of 6 items in national solar industry, about 60 patents of all kinds, over 10 invention patents.

Adhering to the idea of“Create green energy future, Ensure the sustainable social development”, JNTECH takes scientific development view as guideline; Creating green eco-friendly new energy as duty, devoting to promoting the new energy industry development in the world. With non-stop innovation, JNTECH keep serving society, people and the national strategic goal of sustainable development.
