Wide MPPT Deep Well Solar Pump Controller High Precision 5 Years Warranty

China Wide MPPT Deep Well Solar Pump Controller High Precision 5 Years Warranty supplier

Large Image :  Wide MPPT Deep Well Solar Pump Controller High Precision 5 Years Warranty

Product Details:

Place of Origin: CHINA
Brand Name: JNTECH
Certification: CE
Model Number: JNP90KH

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Price negotiable
Packaging Details: Carton/ Pallet / Case
Delivery Time: Within 7 working days after order confirmation
Supply Ability: 600 Sets/ Month
Contact Now
Detailed Product Description

Solar Pump Inverter Solar pumping controller 5 years warranty wide MPPT, deep well solar pump

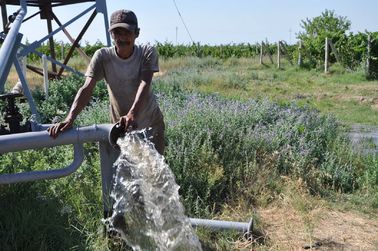

Solar pumping system consists of four parts: solar panels, solar pumping inverter,AC pump and water storage device.
The power range of sola pump we could do for pump is 0.37KW to 165KW;
Matching power of JNTECH Solar pumping inverter with AC water pump is 1:1;
Matching power of Pump with solar panels is 1 :1.3 to 1.4;
Self-design and producing accesseries for optional functions, like AC input function, battery charge function, monitoring function etc.
120HP Solar Pumping Inverter Introduction


Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 205A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 90KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 171A
Dimension(W/H/D) 654mm*1210mm*465mm
weight 220KG
Max. efficiency 98%
Protective class I
Protection degree IP21
Environment temperature -25ºC-+60ºC; above 50ºC need derate operation
Cooling method Force cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <70dB
compliance EN50178; IEC/EN62109-1; IEC61800

JNP90KH Solar Pumping Inverter features:
1. IP65 Outdoor install design;
2. Soft start design, can protect pump for rush current;
3. LCD display shows different parameters with system status;
4. Can handle ambient temperature up to 50℃ and Max. relative humidity > 90%;
5. 3 or 5 years warranty for JNTECH solar pump inverter;
6. With DC switch, no need extra DC breaker when system installation;
7. Automatically dry protection, with water level sensor module for automatic tank level control;
8. No need derate power capacity for pump matching, matching power with pump is 1:1.
9. Full protection, like Input reverse protection, lightning & surging protection, automatic adjust phase sequence,
    Default phase protection, auto dry run protection, over-heating protection, etc.

10. Built-in AC input function.
120HP Water Pump Introduction
Model: SJ150-4, 3 phase; A.C
With rated lift head 135.58m;
Rated water flow 150m3/h
Rated output voltage: 440Vac, 60Hz
Motor: 90KW, 8 inch / 10 inch
Protection level: IP68
Material: all 304 stainless steel (include impeller)
Insulation class: F
Inner Package: one Ply-wooden case
Net weight: 376KGS

Solar Panels
Poly-Crystal; Class A,
connection method:
17 pieces in series, in 23 parallels;
Total Power:125120w
Package: 15 Ply-wooden Box
