1. Simple Introduction
JNTECH Solar Pumping system consists of solar panels, solar pump inverter, AC pump and water storage
device. Solar pump inverter converts DC power produced by solar panels to AC power with drives AC pump
to pump water from borehole, river, lake etc. to water storage device. Inverter applies high efficiency MPPT
algorithm to maximize power harvested from solar panels. It will make the system to maximize efficiency to
get the water as much as possible. The solar pumping system fulfills concept of low carbon, energy
conservation, environmental protetion to inprove the living standard in water-deficient area.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup forsolar
energy, can keep pumping system working 24 hours a day.
2. Product features
1. New design of anodized aluminum case;
2. Hign conversion efficiency, low temperature rise, low noise, long lifespan;
3. Up to 55kw with IP65 protection, resistant to rain, dust and sand;
4. Optional to hybrid solar input and AC input;
5. Can handle ambient temperature from -25℃ to +60℃;
6. Soft start and stop design, can protect pump from rush current;
7. Fully automatic operation, high reliability;
8. Automatic start and shut off according to solar intensity, no need manual operation once started;
9. Any three phase 220V/380V AC pump with good quality can be replaced in future maintenance;
10. No need derate power capacity for pump matching, matching power with pump is 1:1.

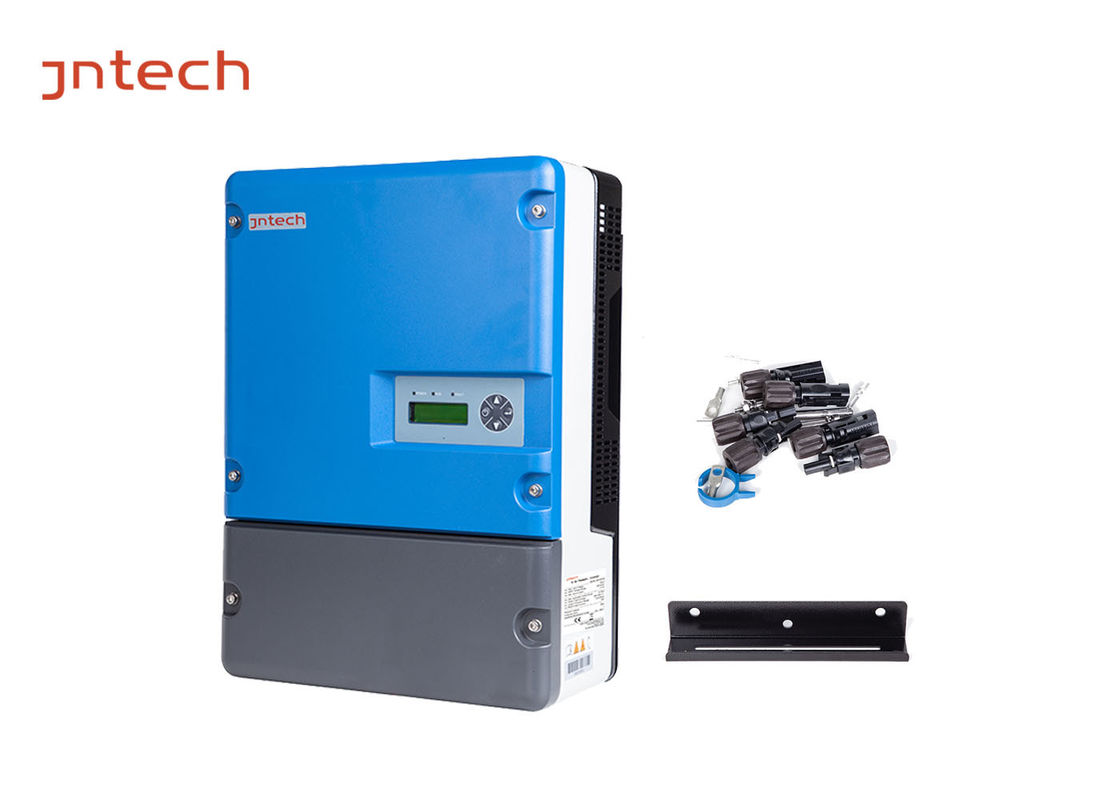

3. 37kw solar pump inverter parameters
|Max. Input DC voltage||880Vdc|
|Recommended MPPT voltage||460-850Vdc|
|Max. Input DC current||82A|
|Max. MPTT efficiency||99%|
|Number of Strings||1|
|Max. applicable motor output power||30KW|
|Rated output voltage||380-460Vac; 3 phase|
|Output frequency range||0-50/60Hz|
|Rated output current||71A|
|Environment temperature||-25ºC-+60ºC; above 60ºC need derate operation|
|Cooling method||Force Cooling|
|Altitude ||3000m; above 3000m need derate operating|
|compliance||EN50178; IEC/EN62109-1; IEC61800|
4. ON-Site Projects' Pictures
6. Ralated products
Solar Pump Inverter: 370W to 132kw.
Outlet Filter to protect motor.
AC Power Pack to hybrid solar input and AC input
Pure Sine Way Solar Off Grid Inverter : 1Kva to 5Kva
