|Power:||22kW 30kW 37kW||Cooling:||Speed Control Fan|
|Output:||Three Phase Pumps 22kW 30kW 37kW||Mppt Range:||450-850Vdc|
MPPT Solar Power 3 Phase Inverter , 22kW 37kW 30kW solar water pump inverter

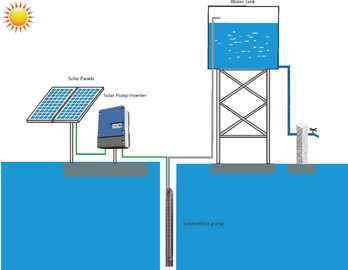

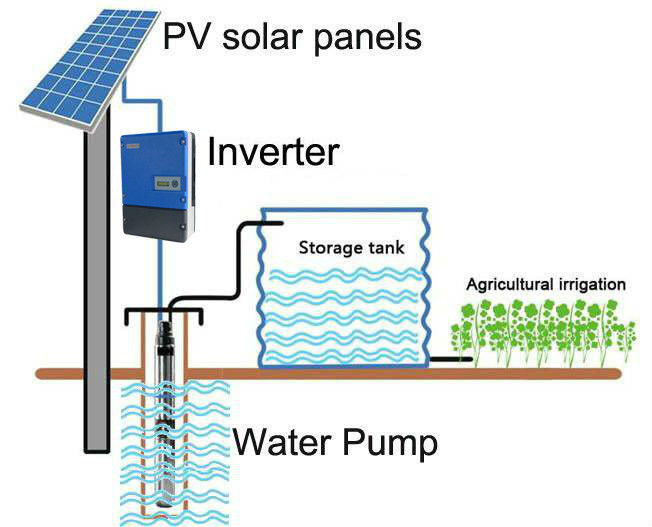

1. Simple Introduction Of JNTECH 30HP(22kw) Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
2. solar pump system feature
3. Solar irrigation system in Pakistan 2016, solar pump VFD 22kW solar pump inverter
|AC Three phase pump||22kW 380Vac 50Hz||1 pcs three phase pump|
|Solar pump inverter||JNP22KH||JNTECH 22kW Pump VFD|
|Solar panels||255W panels||250w* 20pcs *6 strings|
JNTECH provide neutral packing or standard packing. Suitable for sea and air shipment with carton box.
|By sea||Delivery from Shanghai or Ningbo or Nanjing seaport|
|By air||Departure from Shanghai Pudong Airport|
|By express||By TNT/DHL/FedEx|
JNTECH provide best service in Pakistan with office, warehouse, after service. Provide local service with local engineer.
This solar pumping system worked from 2016 until now, Clients mentioned that the solar pumping system working more than 10 hours per day. Water output is better than others.
