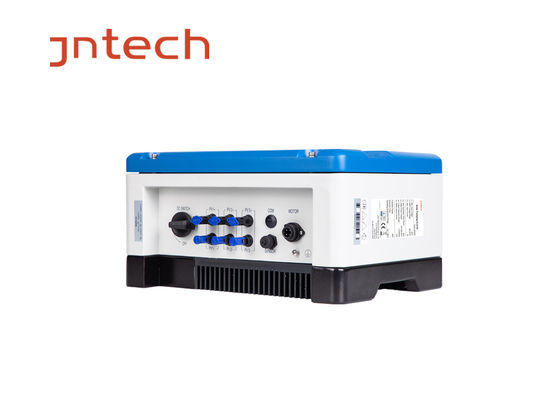

JNTECH Solar Pump Inverter 5HP/4kw MPPT CE/TUV Certificate Max. Efficiency 97% IP65
1. JNTECH 5HP(4kw)Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
2. Product features:
1. Grid utility work when sun radiation is unavailable, support system working 24h/day;
2. Full automatic unattended operation;
Max. Input DC voltage | 750Vdc |
Recommended MPPT voltage | 280-600Vdc |
Max. Input DC current | 15A |
Max. MPPT efficiency | 99% |
Number of String | 2 |
Max. applicable motor output power |
4KW |
Rated output voltage | 220-240Vac 3 phase |
Output frequency range | 0-50/60Hz |
Rated output current | 20A |
Dimension(W/H/D) | 420*310*229mm |
weight | 13.9kgs |
Max. efficiency | 97% |
Protective class | I |
Protection degree | IP65 |
Environment temperature | -25ºC-+60ºC above 60ºC need derate operation |
Cooling method | Natural cooling |
Display | LCD |
Communication interface | GPRS/RS485 |
Altitude | 3000m; above 3000m need derate operating |
Noise emission | <50dB |
compliance | EN 50178; IEC/EN 62109-1; IEC61800 |
4. Solar panels
Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)
Or small cells 100w start
5. Solar pumping inverter
6. Pump Specifications
We choose pump according to project head and water requirement.
7. ON-Site Projects' Pictures
