IP65 3 Phase Solar water Pump Inverter With MPPT / VFD

China IP65 3 Phase Solar water Pump Inverter With MPPT / VFD supplier

Large Image :  IP65 3 Phase Solar water Pump Inverter With MPPT / VFD

Product Details:

Place of Origin: China
Brand Name: JNTECH
Certification: CE/TUV
Model Number: JNP5K5H

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negotation
Packaging Details: Carton
Delivery Time: 3 - 30 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Product Name: Solar Pump Inverter Brand Name: Jntech
Type Number: JNP5K5H Max. PV Input Voltage: 880V
MPPT Range: 460-850V Max. Output: 5.5kw , 380-460V , 3phase , 50 / 60Hz
Communication: RS485/GPRS (Optional) Hybrid AC Input: Optional
Display: LCD PV Input Terminals: 2 Strings
Protection Level: IP65 Warranty: 3 Years
Color: Blue Size: 420*310*229 Cm
Weight: 13.9kg Certificate: CE / TUV

Blue Color IP65 3 Phase Solar Pump Inverter With MPPT / VFD 420*310*229 Cm


1. Jntech solar pump inverter
Jntech solar pump inverter converter DC energy from solar panles to AC energy to drive any AC pumps
to pump water to water tank or using it directly for agricutural irrigarion, village water supply, etc.

IP65 3 Phase Solar water Pump Inverter With MPPT / VFD

2. Product features:
Max. Power Point Tracking (MPPT) for Optimum Solar Performance.
  Wide MPPT range from 460-850V, makes high efficiency and long working time.
Automatic start and shut off according to solar intensity. No need manual operation once started.
♦ Soft start controlling in rush current, to avoid motor burning.
♦ IP65 design for outdoor application. Waterproof and against dust in desert area.
♦ Drive power-matching three phase AC pump. The matching power with pump is 1:1.for example, 5.5kw
  AC pump, we take 5.5kw inverter.
♦ LCD screen display.
  You can see any parameters from LCD screen, easier for engineer’s installation work.
♦ Optional RS485/GPRS communication.
♦ 3 years warranty

3. Protection of Jntech Solar Pump Inverter
• Auotmatical dry protection or using water level sensor for dry protection and overflow protection
Overflow protection
Lighting protection
Short circuit protection
Reverse polarity protection
Under-voltage, weak sunshine, over-current, over-load, shortage-phase output Protection.
Water level sensor, no need open the cover.

4. 4kw solar pump inverter parameters

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 12A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 5.5KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 13A
Dimension(W/H/D) 420mm*310mm*229mm
weight 13.9KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Nature Cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

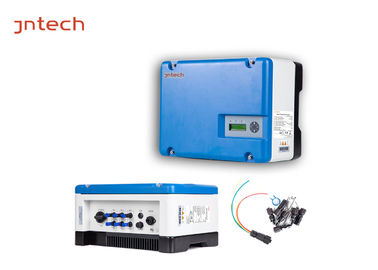

5. photos
IP65 3 Phase Solar water Pump Inverter With MPPT / VFD

IP65 3 Phase Solar water Pump Inverter With MPPT / VFD

6. Ralated products
Solar Pump Inverter: 370W to 132kw.
AC Power Pack to hybrid solar input and AC input
Outlet Filter to protect motor.
Pure Sine Way Solar Off Grid Inverter : 1Kva to 5Kva
