| Warranty: | 3 Years | MPPT Voltage Range: | 460~850Vdc |
|---|---|---|---|
| Max. MPPT Efficiency: | 99% | Protection: | IP21 |
| Dimension: | 654mm*1210mm*465mm | Weight: | 220kg |
1. Simple Introduction
JNTECH Solar Pumping Inverter converts DC power produced by solar panels into AC power required by
the pump. A microprocessor inside inverter continuously monitors available energy levels and adjust pump
speed, matching energy required to energy available. This enables the system to operate under varying
solar insolation levels, and provide water throughout the day and different seasons. The inverter untilize a
high efficiency MPPT algorithm to maximize power harvested from solar panels.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar
energy, can keep pumping system working 24 hours a day.
2. Product features:
1. Adopt advanced IGBT power module;
2. Wide application with all kinds of PV modules and 3 phase AC pump;
| Max. Input DC voltage | 880Vdc |
| Recommended MPPT voltage | 460-850Vdc |
| Max. Input DC current | 251A |
| Max. MPTT efficiency | 99% |
| Number of Strings | 2 |
| Max. applicable motor output power | 110KW |
| Rated output voltage | 380-460Vac; 3 phase |
| Output frequency range | 0-50/60Hz |
| Rated output current | 209A |
| Dimension(W/H/D) | 654mm*1210mm*465mm |
| weight | 220KG |
| Max. efficiency | 98% |
| Protective class | I |
| Protection degree | IP21 |
| Environment temperature | -25ºC-+50ºC; above 50ºC need derate operation |
| Cooling method | Force Cooling |
| Display | LCD |
| Communication interface | RS485/GPRS |
| Altitude | 3000m; above 3000m need derate operating |
| Noise emission | <50dB |
| compliance | EN50178; IEC/EN62109-1; IEC61800 |

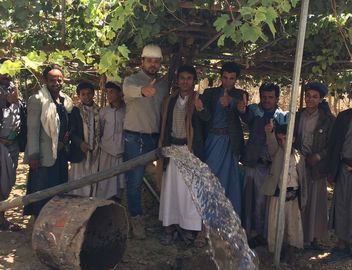

4. ON-Site Projects' Pictures
