Drinking Water / Irrigation 1HP Solar Based Inverter IP65 Force Cooling

China Drinking Water / Irrigation 1HP Solar Based Inverter IP65 Force Cooling supplier

Large Image :  Drinking Water / Irrigation 1HP Solar Based Inverter IP65 Force Cooling

Product Details:

Place of Origin: CHINA
Brand Name: JNTECH
Certification: CE
Model Number: JNP1K1L; JNP1K1L-G

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Price negotiable
Packaging Details: Carton/ Pallet / Case
Delivery Time: Within 7 working days after order confirmation
Supply Ability: 600 Sets/ Month
Contact Now
Detailed Product Description
Name: DC& AC Hybird Input 1HP Solar Pump Inverter Advantage: Drinking Water Or Irrigation
Max. MPTT Efficiency: 99% Max. Applicable Motor Output Power: 1.1KW
Rated Output Current: 5.5A Certification: CE


DC& AC hybird input 1HP Solar Pump Inverter for drinking water or irrigation Fanless IP65 wide MPPT, blue color

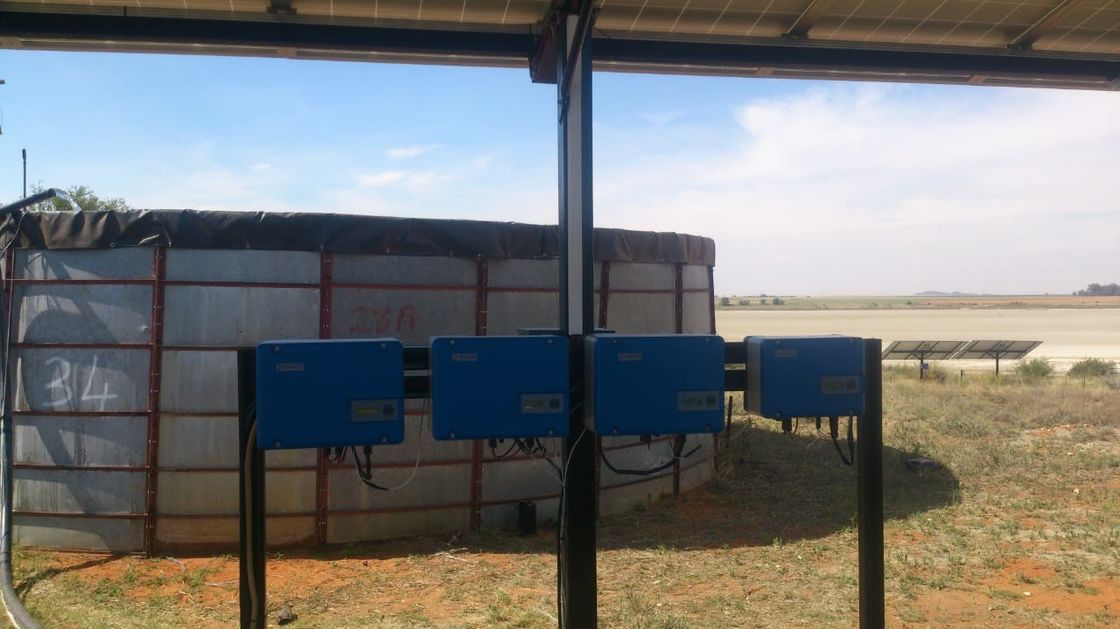

Solar pumping system consists of four parts: solar panels, solar pumping inverter,AC pump and water storage device.
The power range of sola pump we could do for pump is 0.37KW to 165KW;
Matching power of JNTECH Solar pumping inverter with AC water pump is 1:1;
Matching power of Pump with solar panels is 1 :1.3 to 1.4;
Self-design and producing accesseries for optional functions, like AC input function, battery charge function, monitoring function etc.



1HP Solar Pumping Inverter Introduction

Max. Input DC voltage 440Vdc
Recommended MPPT voltage 150-400Vdc
Max. Input DC current 8A
Max. MPTT efficiency 99%
Number of Strings 1
Max. applicable motor output power 1.1KW
Rated output voltage 220-240Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 5.5A
Dimension(W/H/D) 350mm*278mm*179mm
weight 9.5KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 50ºC need derate operation
Cooling method Force cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

JNP1K1L Solar Pumping Inverter features:
1. IP65 Outdoor install design;
2. Soft start design, can protect pump for rush current;
3. LCD display shows different parameters with system status;
4. Can handle ambient temperature up to 50℃ and Max. relative humidity > 90%;
5. 3 or 5 years warranty for JNTECH solar pump inverter;
6. With DC switch, no need extra DC breaker when system installation;
7. Automatically dry protection, with water level sensor module for automatic tank level control;
8. No need derate power capacity for pump matching, matching power with pump is 1:1.
9. Full protection, like Input reverse protection, lightning & surging protection, automatic adjust phase sequence,
    Default phase protection, auto dry run protection, over-heating protection, etc.

10. Built-in AC input function.
Water Pump Introduction
Model: SJ1-10, 3 phase; A.C
With rated lift head 79m;
Rated water flow 1m3/h
Rated output voltage: 220Vac, 60Hz
Motor: 0.75KW, 4 inch
Protection level: IP68
Material: all 304 stainless steel (include impeller)
Insulation class: F
Inner Package: one Ply-wooden case
Net weight: 24KGS

Solar Panels
Poly-Crystal; Class A,
connection method:
4 pieces in series, in 1 parallels;
Total Power: 1200w
Package: 1 Ply-wooden Box
