60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH

Good quality Solar Pump Controller for sales
Good quality Solar Pump Controller for sales
I'm Online Chat Now

60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH

China 60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH supplier
60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH supplier 60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH supplier

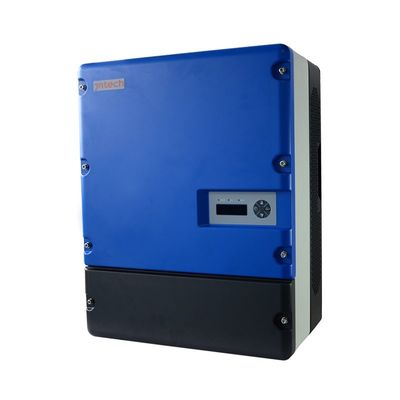

Large Image :  60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH

Product Details:

Place of Origin: CHINA
Brand Name: JNTECH
Certification: CE
Model Number: JNP45KH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: could be discussed
Packaging Details: carton pallot
Delivery Time: 3-30 days
Payment Terms: T/T
Supply Ability: 200+pcs+per week
Contact Now
Detailed Product Description
Warranty: 3years Max.MPPT Efficiency: 99%
Number Of String: 1 Weight: 32.5Kg
Protection Level: IP65 Cooling Way: Force Cooling

JNTECH JNP45KH Solar Pump Inverter 45kw MPPT IP65 LCD Display 60HP 0-50/60HZ


1. JNTECH 60HP(45kw) Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.

60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH
2. Product features:



1. Grid utility work when sun radiation is unavailable, support system working 24 h/day;
2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. 3 years warranty.
6. IP65 design for machine, don't need extra box.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.

3. 60HP 45kw solar pump inverter parameters



Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 100A
Max. MPTT efficiency 99%
Number of Strings 1
Max. applicable motor output power 45KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 86A
Dimension(W/H/D) 460*580*251mm
weight 32.5 kgs
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation
Cooling method Force cooling
Display LCD
Communication interface GPRS/RS485
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
Compliance EN 50178; IEC/EN 62109-1; IEC61800


4. Solar panels
Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)
Or small cells 100w start

60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH
5. Solar pumping inverter

60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH


6. Pump Specifications
We choose pump according to project head and water requirement.
7. ON-Site Projects' Pictures

60HP 3 Phase Pv Inverter / Solar Electric Inverter 45kw No Maintenance JNP45KH
