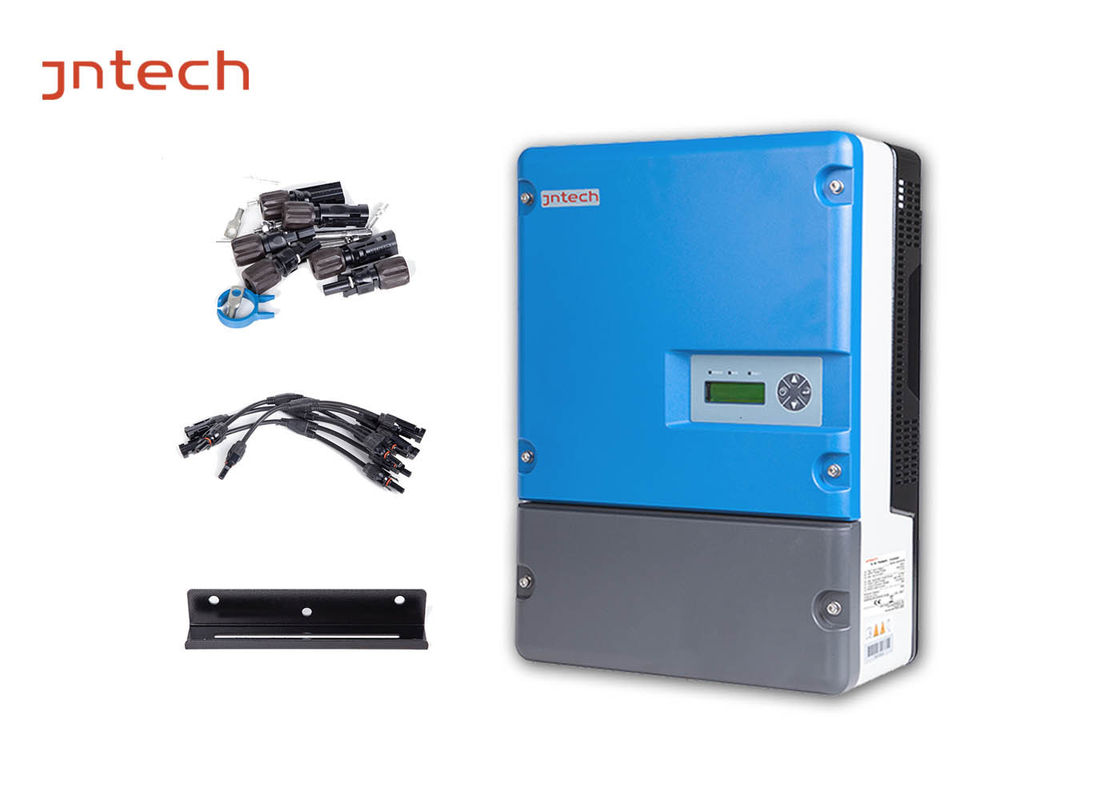

55kw Solar Pump Inverter With LCD Display High Temperature Up To 60℃

China 55kw Solar Pump Inverter With LCD Display High Temperature Up To 60℃ supplier

Large Image :  55kw Solar Pump Inverter With LCD Display High Temperature Up To 60℃

Product Details:

Place of Origin: China
Brand Name: JNTECH
Certification: CE
Model Number: JNP55KH

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negotation
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Protection: IP65 Output Frequency: 0~50/60Hz
Output Voltage: 380~460Vac Temperature: -25℃~+60℃
Noise: <50dB Color: Blue

Jntech 55kw Solar Pump Inverter , LCD Display , High Temperature Up To 60℃

1. Simple Introduction
JNTECH Solar Pumping Inverter converts DC power produced by solar panels into AC power required by the pump. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from solar panels.

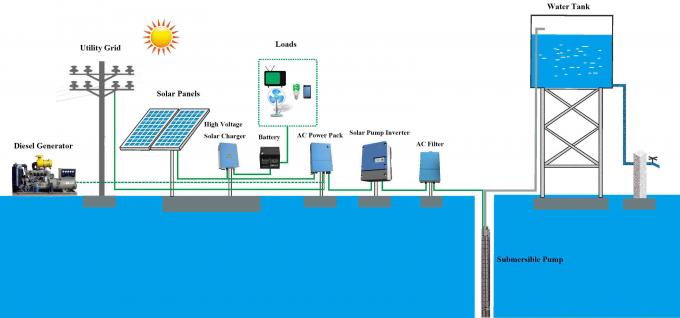

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.


55kw Solar Pump Inverter With LCD Display High Temperature Up To 60℃

2. Product features:



1. New design of anodized aluminum case;
2. Drive power-matched three phase AC pump;

3. Adopt advanced IGBT power module;
4. High flow system for faster tank fill and perfect water output;
5. Can handle ambient temperature from -25 to +60℃;
6. Soft start and soft stop design, can protect pump from rush current;
7. Fully automatic operation, high reliability;
8. Automatic start and shut off according to solar intensity;
9. Up to 55kw with IP65 protection, resistant to rain, dust and sand;
10. Modular design, easy to install, operate and maintain.


3. 55kw solar pump inverter parameters



Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 122A
Max. MPTT efficiency 99%
Number of Strings 1
Max. applicable motor output power 55KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 104A
Dimension(W/H/D) 460mm*580mm*251mm
weight 32.5KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Force Cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

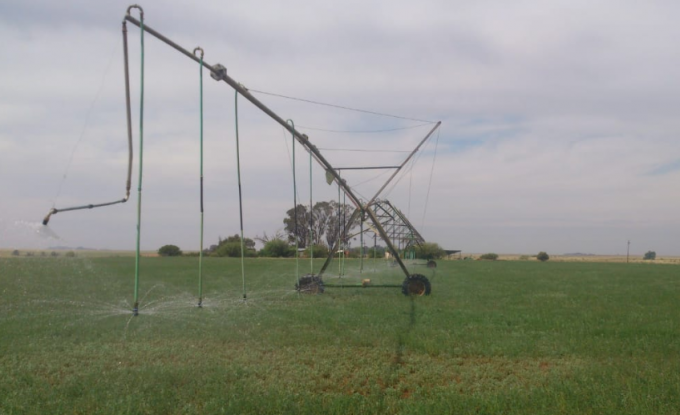

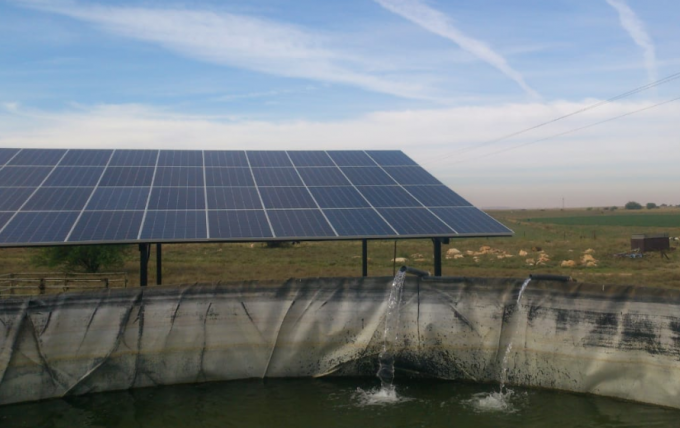

4. ON-Site Projects' Pictures



55kw Solar Pump Inverter With LCD Display High Temperature Up To 60℃

55kw Solar Pump Inverter With LCD Display High Temperature Up To 60℃
