Product Details:
Payment & Shipping Terms:
|
| Output Type:: | Multiple | Type:: | DC/AC Inverters |
|---|---|---|---|
| Output Frequency:: | 0-50/60Hz | Protection:: | IP65 |
| Size:: | 350*278*179mm | Weight:: | 905kg |
| Input Voltage: | 440VDC | Output Frequency: | 0-50/60Hz |
| Warranty: | 3 Years | Efficiency: | 98% |
| Application: | Water Pump |

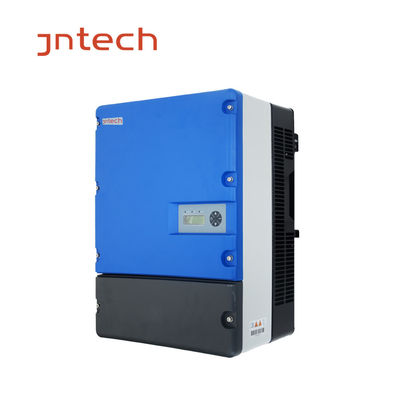

Solar Pumping Inverter&system- Three Phase(1.1kw-55kw) IP65, efficience ＞99%.
Features
Drive power-matched three-phase AC pump.
Adopt advanced IGBT power module.
High conversion efficiency, low temperature rise,lownoise,long lifespan.
Advanced MPPT technology,efficience ＞99%.
Fully automatic operation,it can store operation datefor 10 years.
Perfect system protection,high reliability.
New design of anodized aluminum case.
LCD display.
Interface:RS485/GPRS.
Modular design,easy to install,operate,maintain.
Solar panels
Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
Solar pump application
solar pump system feature
Solar panels
Polycrystalline 330w(Vmp=38.1 V, Isc=9.14A) solar panels are used in system configuration
Solar pumping inverter
| d.c. Max. Input Voltage | 440Vdc |
| Recommended MPPT Voltage | 150~400Vdc |
| d.c. Max. Input Current | 8A |
| Max. Motor Output Power | 1.1kW |
| Rated Output Voltage | 220 ~240 Vac |
| Output Frequency | 0~50/60Hz |
| Rated Output Current | 5.5A |
Pump Specifications
We choose pump according tp project head and water requirement.
Project on-site
Packing & Shipping
| By sea | Delivery from Shanghai or Ningbo or Nanjing seaport |
| By air | Departure from Shanghai Pudong Airport |
| By express | By TNT/DHL/FedEx |
JNTECH is pioneer of offering “Solar Energy Storage System technology for residential use”, expanded solar industry development mode. Company also be in charge of drafting national industrial standards of solar pump inverter/system, solar sprinkling/drip irrigation system, residential solar system and etc.
JNTECH developed solar off-grid inverter, solar pump inverter, solar floating platform and relative solar products all have passed national or international certification, already have been widely used in more than 60 countries worldwide.
Focusing on renewable energy application’s high-tech technology, JNTECH RENEWABLE ENERGY CO.,LTD is one international enterprise, which integrate intelligent power electronics products’ R&D, manufacture, sales and service. Successively set up branch/subsidiary office in Pakistan, Kenya, Sudan, Dubai, Philipine, Morocco,and Mexico.
Company possess one Senior R&D team based on doctors and masters, standard-setter of 6 items in national solar industry, about 60 patents of all kinds, over 10 invention patents.
Adhering to the idea of“Create green energy future, Ensure the sustainable social development”, JNTECH takes scientific development view as guideline; Creating green eco-friendly new energy as duty, devoting to promoting the new energy industry development in the world. With non-stop innovation, JNTECH keep serving society, people and the national strategic goal of sustainable development.
