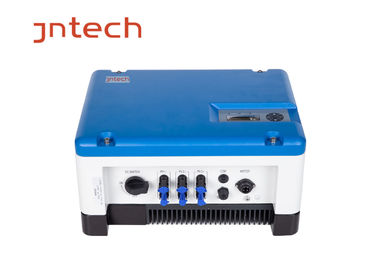

2.2kw 380V Three Phase Pv Inverter Full MC4 Terminals Install Without Combiner Box

China 2.2kw 380V Three Phase Pv Inverter Full MC4 Terminals Install Without Combiner Box supplier

Large Image :  2.2kw 380V Three Phase Pv Inverter Full MC4 Terminals Install Without Combiner Box

Product Details:

Place of Origin: China
Brand Name: JNTECH
Certification: CE
Model Number: JNP2K2H

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negotation
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Rated Output Voltage: 380~460Vac Cooling: Natural Cooling
Protection: IP65 Warranty: Three Years
Output: Three Phase Max. MPPT Efficiency: 99%

2.2kw 380V Jntech Inverter , Full MC4 Terminals , Install Without Combiner Box

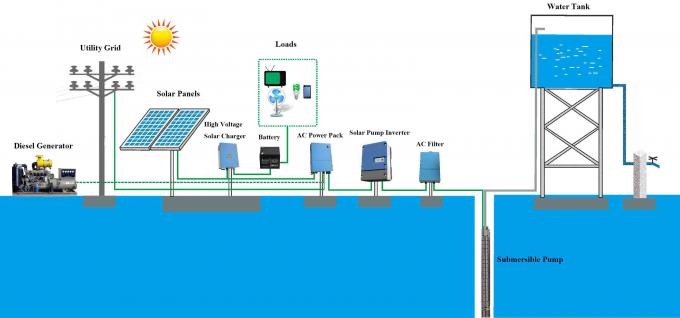

1. Simple Introduction Of JNTECH Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.


2.2kw 380V Three Phase Pv Inverter Full MC4 Terminals Install Without Combiner Box

2. Product features:



1. Grid or diesel generator can be hybrid at cloudy day or at night, system is available to work 24 hours per day;
2.
Wide application with all kinds of solar panels and AC pump;

3. Soft start design, can protect pump for rush current;
4. ROI is only less than 2 years compared to diesel generator;
5. IP65 design for outdoors application;
6. 3 years warranty for JNTECH solar pump inverter;
7. Built-in MPPT function for optimum solar performance;
8. Remote monitoring and communication function, with optional GPRS module;
9. Complete system protection function and long lifespan;
10. Full automatic unattended operation with pergect protection functions for long lifespan.


3. 2.2kw solar pump inverter parameters



Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 5A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 2.2KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 6A
Dimension(W/H/D) 420mm*310mm*229mm
weight 13.9KG
Max. efficiency 96%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Nature cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800


4. ON-Site Projects' Pictures



2.2kw 380V Three Phase Pv Inverter Full MC4 Terminals Install Without Combiner Box

2.2kw 380V Three Phase Pv Inverter Full MC4 Terminals Install Without Combiner Box
