Rated Output Voltage: | 380~460Vac | Protection Class: | I |
---|---|---|---|
Protection: | IP65 Protection | Warranty: | 3 Years |
Cooling Way: | Force Cooling | Weight: | 19.9kg |

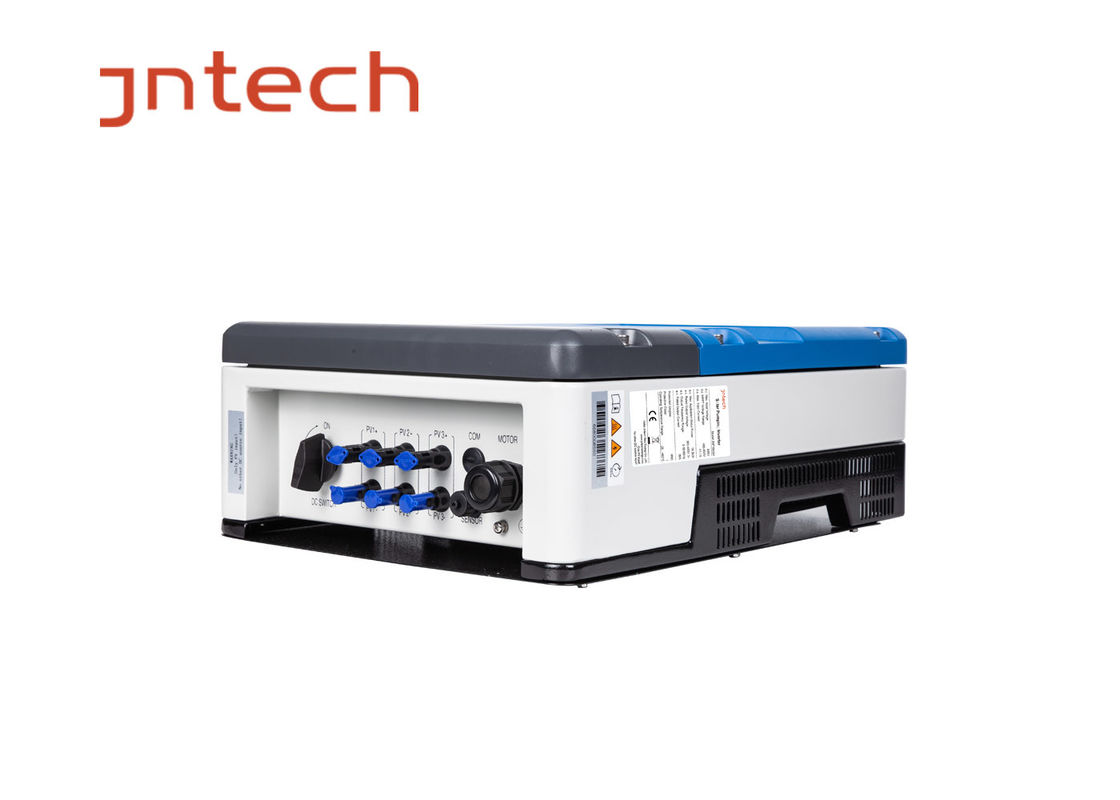

15HP Factory Solar Pump Inverter , Jntech High Efficiency Solar Controller
1. Simple Introduction

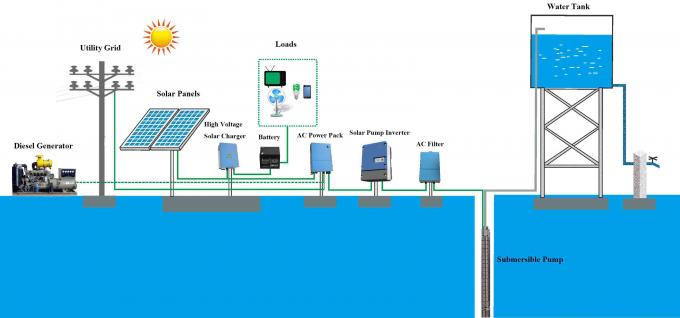

JNTECH Solar Pumping Inverter converts DC power produced by solar panels into AC power required by the pump. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from solar panels.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
2. Product features:
1. With DC switch, no need extra DC breaker when system installation;
2. Full MC4 connectors and other terminals, easy for installation;
3. 11kw solar pump inverter parameters
Max. Input DC voltage | 880Vdc |
Recommended MPPT voltage | 460-850Vdc |
Max. Input DC current | 24.4A |
Max. MPTT efficiency | 99% |
Number of Strings | 3 |
Max. applicable motor output power | 11KW |
Rated output voltage | 380-460Vac; 3 phase |
Output frequency range | 0-50/60Hz |
Rated output current | 21A |
Dimension(W/H/D) | 360mm*500mm*176mm |
weight | 19.9KG |
Max. efficiency | 98% |
Protective class | I |
Protection degree | IP65 |
Environment temperature | -25ºC-+60ºC; above 60ºC need derate operation |
Cooling method | Nature cooling |
Display | LCD |
Communication interface | RS485/GPRS |
Altitude | 3000m; above 3000m need derate operating |
Noise emission | <50dB |
compliance | EN50178; IEC/EN62109-1; IEC61800 |

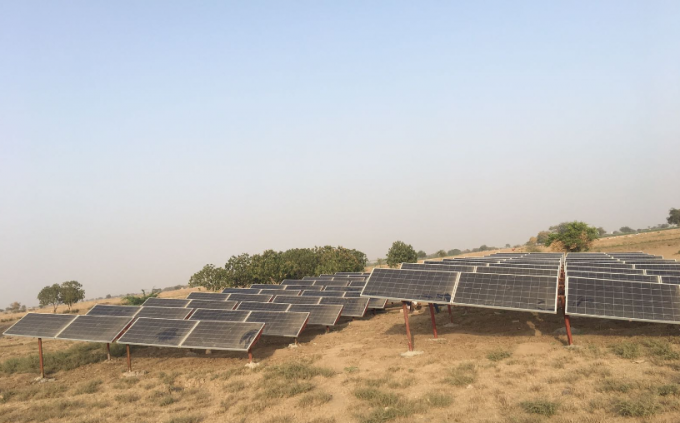

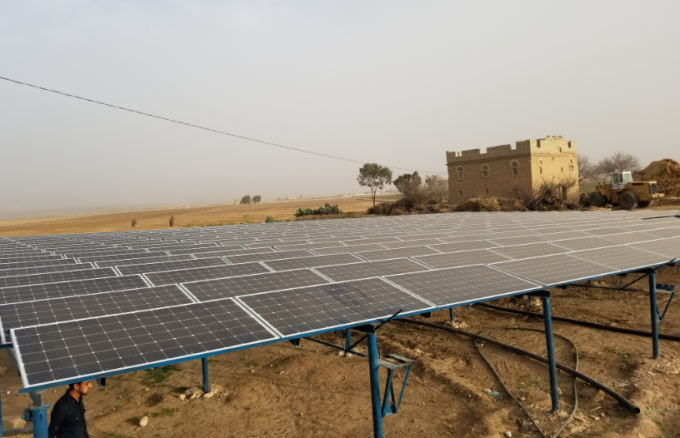

4. ON-Site Projects' Pictures
