Product Details:
Payment & Shipping Terms:
|
| Output Type: | TRIPLE | Input Voltage: | 460~850Vdc |
|---|---|---|---|
| Output Voltage: | 380~460Vac | Type: | DC/AC Inverters |
| Output Frequency: | 0~50/60Hz | Output Current: | 251A |
| Size: | 654mm*1210mm*465mm | Weight: | 220KG |
| Warranty: | 3 Years | Protection Level: | IP21 |
| Certificate: | ISO9001/14001/CE/TUV | MPPT Efficiency: | 99% |
| Operating Temperature: | -25℃~+60℃ | Display: | LCD |
| Max Efficiency: | 98% | Communication: | RS485/GPRS |
| Port: | Port Shanghai, Port Ningbo |

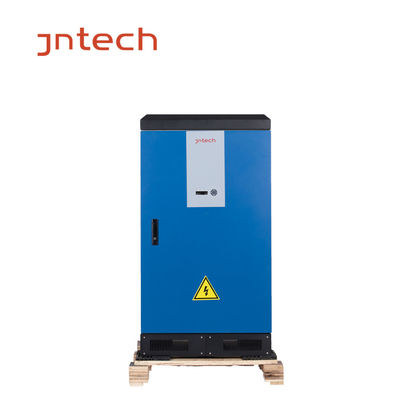

132kW solar pump inverter three phase dc to ac for village water supply
1. Simple Introduction Of JNTECH Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by
the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust
pump speed, matching energy required to energy available. This enables the system to operate under
varying solar insolation levels, and provide water throughout the day and through different seasons.
The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for
solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
2. Product features:
1. Grid utility work as supplement when sun radiation is unavailable, support system working 24 h/day;
2. Full automatic unattended operation;
3. 132kw solar pump inverter parameters
| Max. Input DC voltage | 880Vdc |
| Recommended MPPT voltage | 460-850Vdc |
| Max. Input DC current | 287A |
| Max. MPTT efficiency | 99% |
| Number of Strings | 2 |
| Max. applicable motor output power | 132KW |
| Rated output voltage | 380-460Vac; 3 phase |
| Output frequency range | 0-50/60Hz |
| Rated output current | 251A |
| Dimension(W/H/D) | 460mm*580mm*251mm |
| weight | 220KG |
| Max. efficiency | 98% |
| Protective class | I |
| Protection degree | IP21 |
| Environment temperature | -25ºC-+50ºC; above 50ºC need derate operation |
| Cooling method | Force cooling |
| Display | LCD |
| Communication interface | RS485/GPRS |
| Altitude | 3000m; above 3000m need derate operating |
| Noise emission | <50dB |
| compliance | EN50178; IEC/EN62109-1; IEC61800 |
4. Solar panels
Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells) or smaller cells.
5. Pump Specifications
We choose pump according to project head and water requirement.
6. ON-Site Projects' Pictures
