Product Details:
Payment & Shipping Terms:
|
| Warranty: | 3 Years | Output Power: | 110kw |
|---|---|---|---|
| Rated Output Current: | 209A | Protection Level: | IP21 |
| Max.Efficiency: | 98% | Display: | LCD |

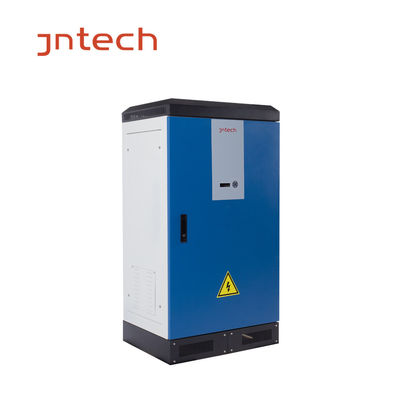

MPPT Inverter 110KW/150HP 3 Phase Solar Pump Inverter 0-50/60HZ,Force Cooling,LCD Display,RS485/GPRS
1.JNTECH 150HP(110kw) Solar Water Pumping System
JNTECH Solar Inverter converts DC power produced by solar module into AC required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.
At the same time, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, could make system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
2. Product features:
1. Soft start controlling in rush current, to avoid motor burning;
2. Grid utility work when sun radiation is unavailable, support system working 24 h/day;
| Max. Input DC voltage | 880Vdc |
| Recommended MPPT voltage | 460-850Vdc |
| Max. Input DC current | 251A |
| Max. MPTT efficiency | 99% |
| Number of Strings | 2 |
| Max. applicable motor output power | 110kw |
| Rated output voltage | 380-460Vac 3 phase |
| Output frequency range | 0-50/60Hz |
| Rated output current | 209A |
| Dimension(W/H/D) | 654*1210*465mm |
| weight | 220kgs |
| Max. efficiency | 98% |
| Protective class | I |
| Protection degree | IP21 |
| Environment temperature | -25ºC+50ºC above 50ºC need derate operation |
| Cooling method | Force cooling |
| Display | LCD |
| Communication interface | GPRS/RS485 |
| Altitude | 3000m; above 3000m need derate operating |
| Noise emission | <50dB |
| compliance | EN 50178; IEC/EN 62109-1; IEC61800 |
4. Solar panels
Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)
Or small cells 100w start
5. Solar pumping inverter
The following is our inverter,please kindly go through.
6. Pump Specifications
We choose pump according to project head and water flow requirement.
7. ON-Site Projects' Pictures
