Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation

China Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation supplier
Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation supplier Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation supplier Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation supplier Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation supplier

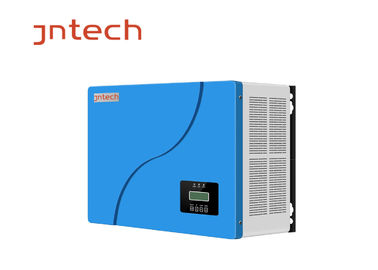

Large Image :  Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation

Product Details:

Place of Origin: China
Brand Name: JNTECH
Certification: CE
Model Number: JNF3KLF off grid system

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 59*45*30cm, carton box
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Transformer: With Transformer Efficiency: >89%
Mppt Range: 45-150Vdc Max PV Input: 2.4kw
Waveform: Pure Sine Wave Power Source: Solar And Grid
Cooling: Force Cooling Battery Require: 48Vdc

3kVa 24v DC to AC pure sine wave off grid solar power systems with charger and MPPT controller



1. What is low frequency JNTECH residential hybrid off grid system with  AC and solar MPPT charger controller.



With functions of  low frequecy inverter, solar MPPT charge controller, AC charger, and AC by-pass to offer continously power support to all kinds of housefold. The LCD display offers user-configurable and easy accessible button operation for end user.



2. Why JNTECH off grid solar inverter



  Safety:



   1. Overload and short circuit all kinds of protection;
   2. Compatible to grid or generator power with AC charger.

   3. Auto restart while AC is recovering;



   Intelligent:



   1. Advanced battery management system (BMS);

   2. Special AC output design, adopt emergency & heavy loads.

   3. Support sealed battery and lithium battery with BMS;



   Smart:



   1. Perfect pure sine wave output;

   2. Select charging current;

   3. Configurable AC/DC input priority by LCD setting.



  Reliable:



   1. Silicon-controlled rectifier be adoped in AC by-pass;

   2. Built-in pure copper transformer for perfect overload protection;

   3. Provide power supply to load for 24 hours with by pass and AC charger.



3. Technical Parameters

Model
JNF3KLF/48V-V2
Max. PV input voltage
150Vdc
Suitable PV array power
3300W
MPPT range
35~145Vdc
 Rated Battery voltage
48Vdc
Battery rated charge current
40A
Battery charge efficiency
≥96%
Rated output capacity
3KVA
Rated output power
2400W
Output voltage
230Vac (±5%)
Rated frequency
50/60Hz (±3%)
Standby loss
≤10W
Max. efficiency
90%~93%
Total harmonic distortion (THD)
<3%
Rated current
4.5A
Current peak factor
3:1
Overload
125%@rated power, 70s; 150%@rated power, 30s; 200%@rated power, 5s; 300%@rate power, 10ms
AC input charge voltage
160~270Vac
AC input frequency
50/60Hz (±3%)
Max. charge current
20A
Grid by-pass switching time
<3%
Dimension
485mm*365mm*235mm
Weight
28kg
Protection level
IP21
Audible noice
<60dB
Cooling method
Force cooling
Operate temperature
-20~+50℃
Storage temperature
-20~+70℃
Status indicator
LCD+LED
Interface
RS485 (optional)
Elevation
2000m (>2000m need derating operate)

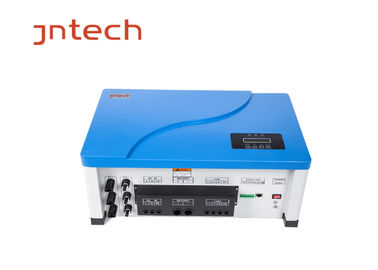

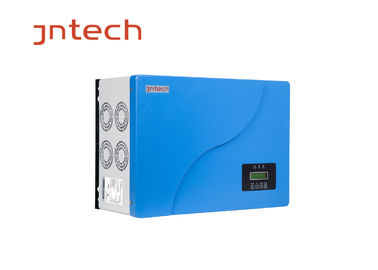

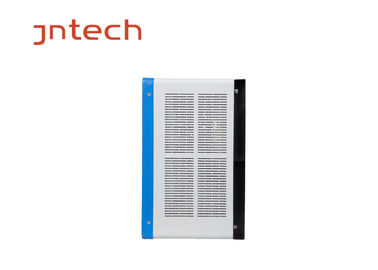

4. Products detailed pictures



Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation

Pure Sine Wave Off Grid Solar Power Systems 3kVa 24v DC To AC Easy Installation
