IP65 Protection 220V AC 3kw 3 Phase Solar Inverter / Dc To 3 Phase Ac Inverter

China IP65 Protection 220V AC 3kw 3 Phase Solar Inverter / Dc To 3 Phase Ac Inverter supplier

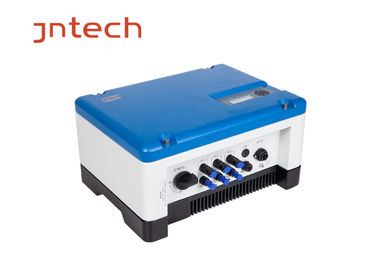

Large Image :  IP65 Protection 220V AC 3kw 3 Phase Solar Inverter / Dc To 3 Phase Ac Inverter

Product Details:

Place of Origin: China
Brand Name: JNTECH
Certification: CE
Model Number: JNP3KL

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negotation
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Max. MPPT Efficiency: 99% Max. Motor Output Power: 3kw
Warranty Time: 3 Years Protection Level: IP65
Communication: RS485/GPRS Altitude: 3000m, Above 3000m Need Derate Operating

IP65 Protection 3kw Jntech Solar Pump Inverter , 220V AC 3 Phase Controller

1. Introduction
JNTECH Solar Pumping Inverter transfers DC power to AC power to drive the pump. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and different seasons. The inverter untilize a high efficiency MPPT to maximize power harvested from solar panels.

Meanwhile, the application of AC PowerPack can hybrid grid/DG, keeps pump running 24 hours per day.
The power drawn from AC source is adjustable according to the intensity of solar energy.


IP65 Protection 220V AC 3kw 3 Phase Solar Inverter / Dc To 3 Phase Ac Inverter

2. Product features:



1. Grid or diesel generator can be hybrid at cloudy day or at night, system is available to work 24 hours per day;
2. Full automatic unattended operation with perfect protection functions for long lifespan;

3. With soft start can protect pump from rush current;
4. Wide application with all kinds of PV panels and AC pumps;
5. Built-in MPPT function for optimum solar performance;
6. JNTECH solar pumping inverter gives 3 years warranty;
7. ROI is only less than 2 years compared to diesel generator;
8. Remote monitoring and communication function, with optional GPRS module;
9. Complete system protection function and long lifespan.
10. Water proof IP65 protection design;


3. 3kw solar pump inverter parameters



Max. Input DC voltage 440Vdc
Recommended MPPT voltage 150-400Vdc
Max. Input DC current 21A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 3KW
Rated output voltage 220-240Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 14A
Dimension(W/H/D) 420mm*310mm*211mm
weight 14.5KG
Max. efficiency 97%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Nature Cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800


4. ON-Site Projects' Pictures



IP65 Protection 220V AC 3kw 3 Phase Solar Inverter / Dc To 3 Phase Ac Inverter

IP65 Protection 220V AC 3kw 3 Phase Solar Inverter / Dc To 3 Phase Ac Inverter
