| Specification: | Normal | Application: | Commercial |
|---|---|---|---|
| Output Voltage (V): | 220V | Load Power (W): | 2.2kW |
| Work Time (h): | 8hours | Solar Panel Type: | Grade A Polycrystalline |
| Controller Type: | DC/AC | Output Frequency: | 50Hz |
| Solar Panel: | 3120w | Water Pump: | 2.2kw 220Vac Pump |
| Solar Pump Inverter: | 2.2kw | Water Flow: | 3m3/h |
| Total Head: | 130m | Warranty: | 10 Years For PV Module, 3 Years For Inverter |
| Port: | Shanghai Port, Ningbo Port, Nanjing Port |
Jntech 2.2kw 220v three phase solar submersible water pumping system for irrigation in Zambia
1. Solar Water Pumping System Introduction

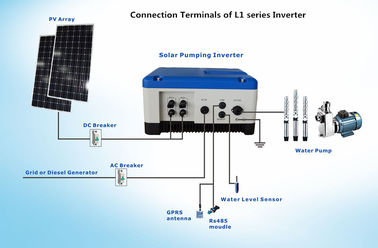

solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panel to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.
2.Solar pump application
3. solar pump system feature
4. Solar panels
Polycrystalline 330w(Vmp=38.1 V, Isc=9.14A) solar panels are used in system configuration
5. Solar pumping inverter
|
d.c. Max. Input Voltage |
440Vdc |
|
Recommended MPPT Voltage |
150~400Vdc |
|
d.c. Max. Input Current |
14.6A |
|
Max. Motor Output Power |
2.2kW |
|
Rated Output Voltage |
220 ~240 Vac |
|
Output Frequency |
0~50/60Hz |
|
Rated Output Current |
11A |
6. Pump Specifications
We choose pump according tp project head and water requirement.

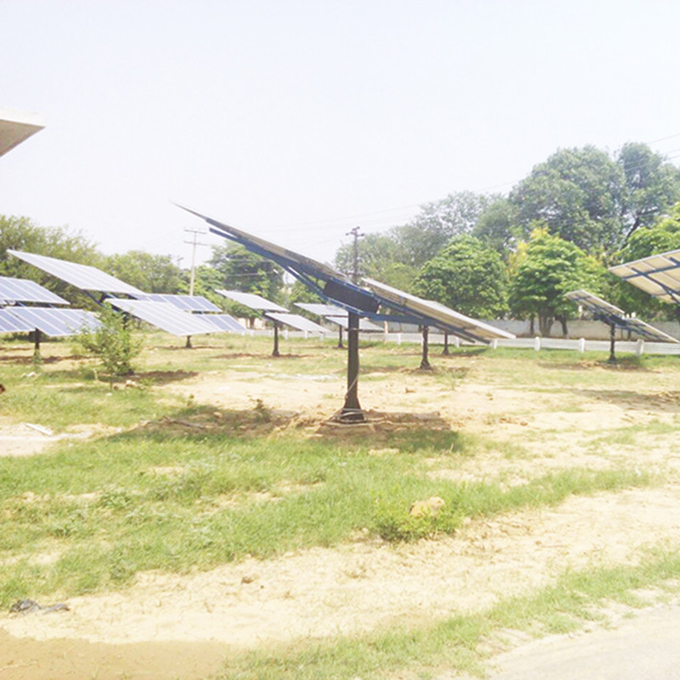

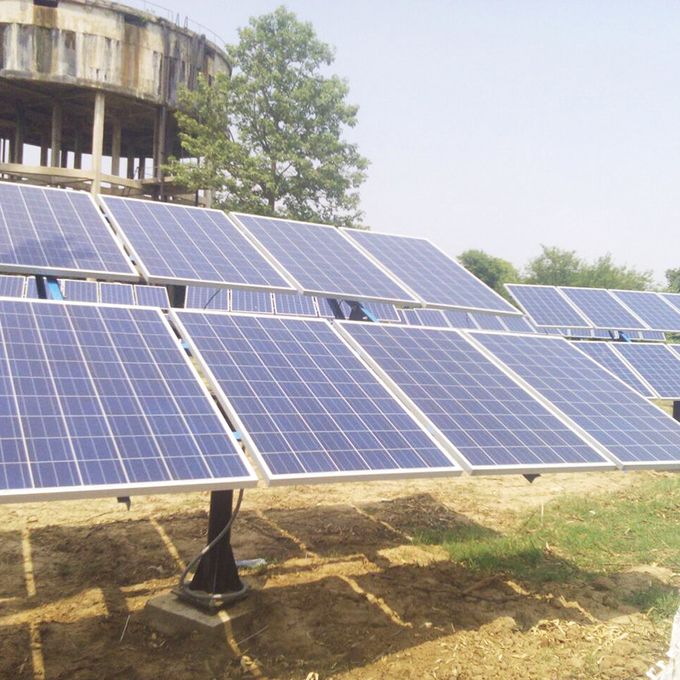

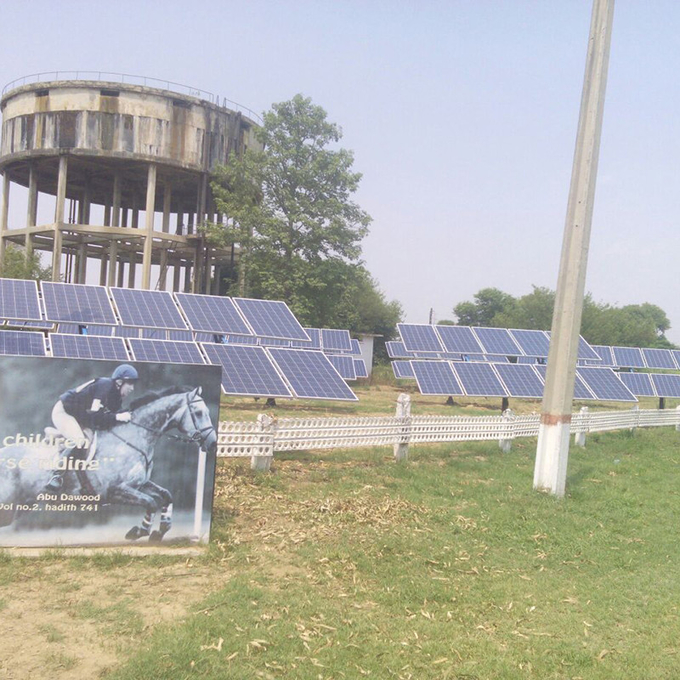

7. Project on-site
8.Packing & Shipping
| By sea | Delivery from Shanghai or Ningbo or Nanjing seaport |
| By air | Departure from Shanghai Pudong Airport |
| By express | By TNT/DHL/FedEx |
