|Dc. Max. Input Voltage:||880V||Recommended MPPT Voltage:||460-850VDC|
|Max. MPPT Efficiency:||99%||Max. Motor Output Power:||3KW|
|Rated Output Voltage:||380-460Vac Three Phase||Output Frequency Range:||0-50/60Hz|
|Protection Level:||IP65||Warranty:||3 Years|
|Port:||Shanghai Port, Ningbo Port|

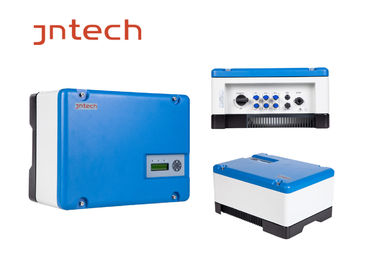

1. Introduction of three phase AC solar pump inverter
Jntech solar pumping inverter is AC three phase 50/60Hz inverter, there are two series of solar pumping
inverter,output 220V-240V inverters range from 1.1kw to 4kw. and 380-460V inverters range from 2.2kw to 132kw.
2.Features of Three phase AC solar pump inverter
1), Wide MPPT range,tracking the max. power point to improve the efficiency of the Whole system.
efficiency is more than 99%.
2), With IP65 design, It can be installed outside with good waterproof and dust proof.
3), Matching for any ordinary three phase 50Hz/60Hz pumps.
3), Full protection function can keep the system always in safe operation.
4),Three years warranty time.
5), Modular design,easy to install,operate and maintain.
3. Technical parameter of solar pump inverter
|Max. Input DC voltage||880Vdc|
|Recommended MPPT voltage||460-850Vdc|
|Max. Input DC current||6.9A|
|Max. MPTT efficiency||99%|
|Number of Strings||2|
|Max. applicable motor output power||3KW|
|Rated output voltage||380-460Vac 3 phase|
|Output frequency range||0-50/60Hz|
|Rated output current||7A|
|Environment temperature||-25ºC-+60ºC above 60ºC need derate operation|
|Cooling method||Natural cooling|
|Altitude||3000m; above 3000m need derate operating|
|compliance||EN 50178; IEC/EN 62109-1; IEC61800|
4.Introduction of Jntech solar pumping system
Jntech solar pumping system consists of solar panels, solar pumping inverter, three phase AC pump and storage device.The solar pumping inverter converts the DC power from solar panels to AC power which drives AC pump to pump the water from borehole, lake, river etc. to the storage device.
The power drawn from AC source is adjustable according to the intensity of solar energy.
5.Application of solar pumping system
Solar pumping system mainly used for daily water using, agricultural irrigation, forest irrigation, desert control, pasture animal husbandry, rural town and village water supply, desalinization of sea water,scenic fountain etc.
